Description
LITHIUM IRON PHOSPHATE BATTERY
Compared with traditional batteries, our lithium iron phosphate batteries (LiFePO4) have many advantages:
- IEC 62619 certified
- 5-year manufacturer’s warranty
- The safest technology, without risk of fire or explosion
- Long service life
- Constantly improving storage capacity
- High stability even under extreme loads
- No memory effect, no need for full charge and discharge cycles
- High performance even under extreme conditions
- Deep and regular discharge and charging efficiency
- Small size and lightweight
Integrated Battery Management System(BMS)
To allow the control and the charge of the different elements of an accumulator battery and to protect it against overcharging,over-voltages and overheating.
Basic Information:
| Model | 12.8V 100Ah |
| BMS (Battery Management System) | Integrated |
| Rated capacity | 100Ah/1280Wh |
| Number of cycles | >4000 |
| Weight | 16.9KG |
| Dimensions (Lx Wx H) in mm | 530*290*65 (Excluding Fixed support) |
| Operating voltage range | 10-14.6V |
| Rated voltage | 12.8V |
| Warranty | 5-year |
Â
Charge:
| Charging characteristics | CCCV/IU |
| Charging voltage | 14.6V |
| Recommended charge current | 20A |
| Maximum charge current | 50A |
Discharge:
| Maximum discharge current | 150A |
| Discharge cut-off current maximum(200~500ms)(A) | 310A |
Temperature:
| Temperature range (discharge) | -20 ~ 60℃ |
| Temperature range (charge) * | 0 ~ 55℃ |
| Temperature range (storage) | -5~ 35℃ |
| Ingress protection code | IP30 |
| Application/ Interconnection | Series and parallel connection for 12V/24V/36V/48V applications. |
Material:
| Material of case Terminals | M8 Pole & Anderson |
Intelligent Monitoring:

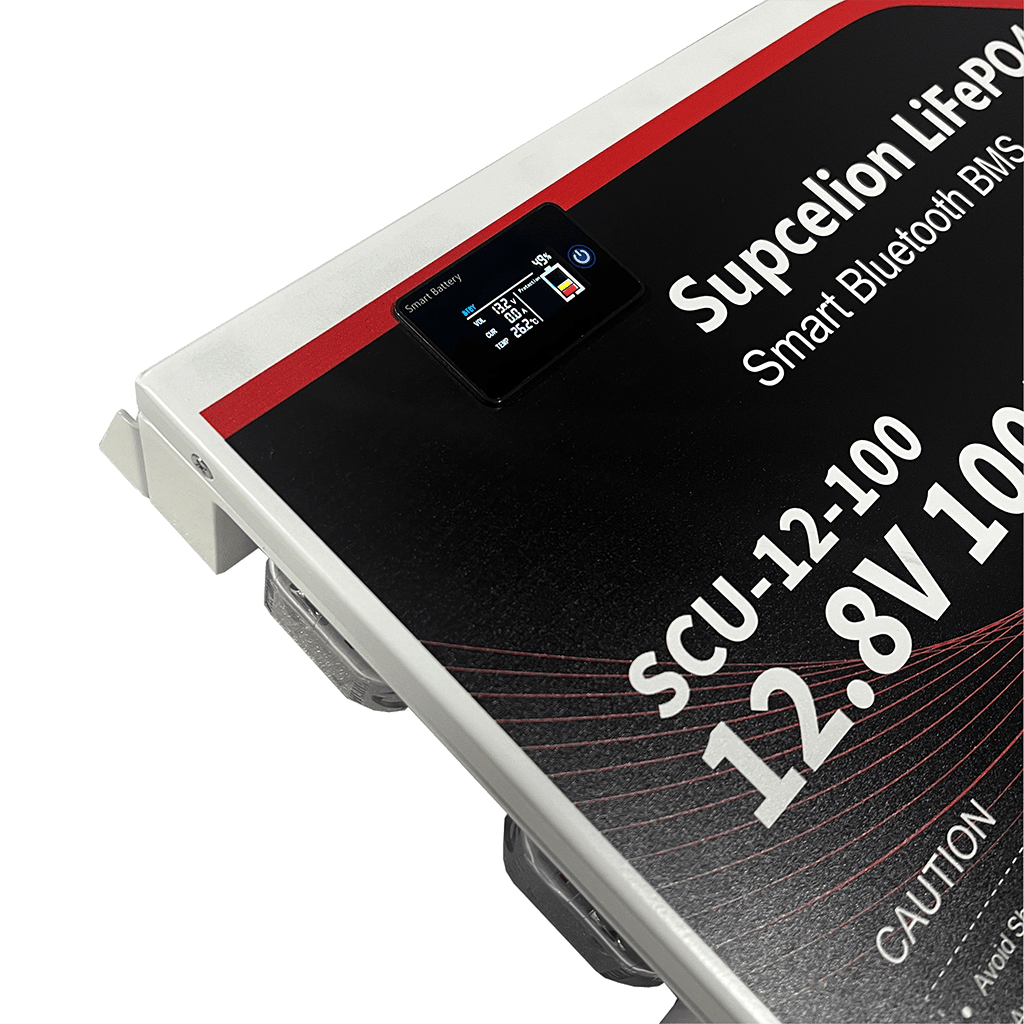

| Monitoring | LCD & Bluetooth 4.0 with smartphone app |
| Connection | Can be connected in series and parallel |
Additional Information:
| Weight | 16.9 kg |
|---|---|
| Dimensions | 530 × 290 × 65 mm |
